Andrews 88
Performance Cruiser

Return to New Designs page

Preliminary Dimensions

LOA   88.00 ft. 26.82 m.
LWL   70.40 ft. 23.23 m.
Beam 21.00 ft. 6.41 m.
Draft (keel up)    7.50 ft.
(keel down)  10.50 ft.
2.28 m.
3.19 m.
Displacement 83,000 lbs. 37,500 kgs
Ballast & keel 33,000 lbs. 15,000 kgs

    Sail Area  3255 ft2
(Sail Area + 100% Foretriangle)


303 m2
P         96.50 ft.  29.40 m.
BAS        8.20 ft. 2.50 m.
E          36.10 ft. 11.00 m.
IM         98.40 ft. 30.00 m.
J           30.80 ft. 9.40 m.
ISP     106.00 ft. 32.30 m.
TPS      34.70 ft. 10.60 m.
Propulsion       Yanmar 6LPA-DTP or 6LPA-STP
            194-235 kW  260-315 HP
       2.52:1 Reduction Gear
                    3-blade feathering Maxprop

  Generators 2 ea. Northern Lights M844K (16 kW)
 Water          1900 liters  500 US gal.
Diesel          2300 liters  600 US gal.
Black water 1500 liters  300 US gal.

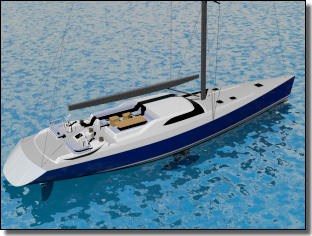

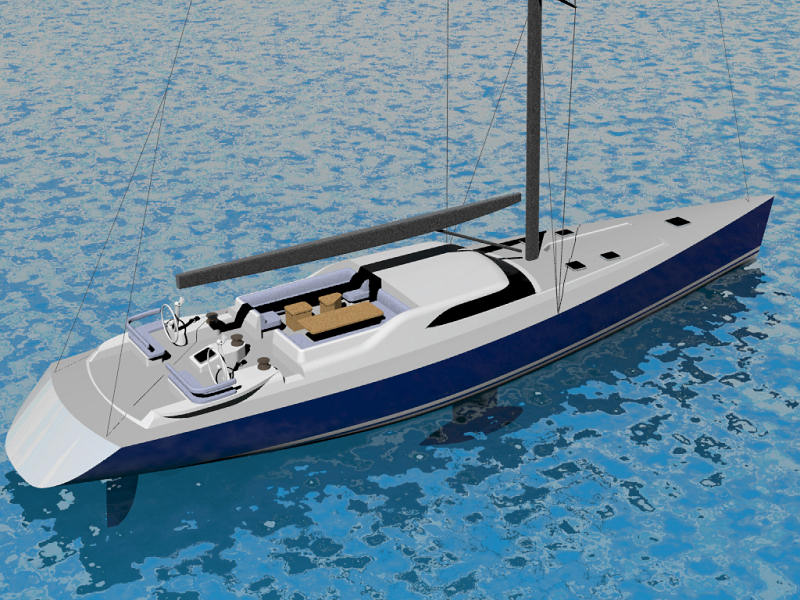

88 foot performance cruiser
(Click to enlarge-use browser back button to return)

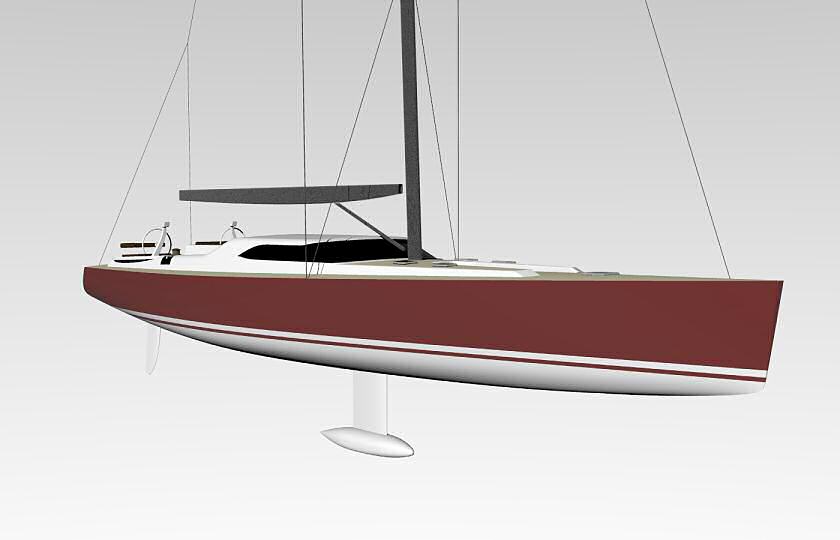

88 foot performance cruiser
(Click to enlarge-use browser back button to return)

(Opens in new window - 1392 kb)
(Requires Macromedia Flash Player - available for free here if not already installed)
