Andrews 45
 Cruiser/Racer

45 foot sloop for club racing and family cruising.  This boat will compete well under IRC, ORR and PHRF.  It also has the capability to cross oceans and cruise for weeks at a time.

Return to New Design Page


                                  (Click to enlarge)

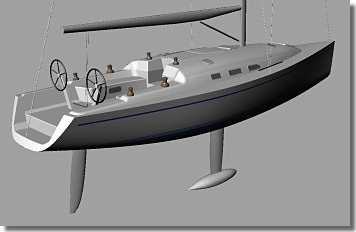

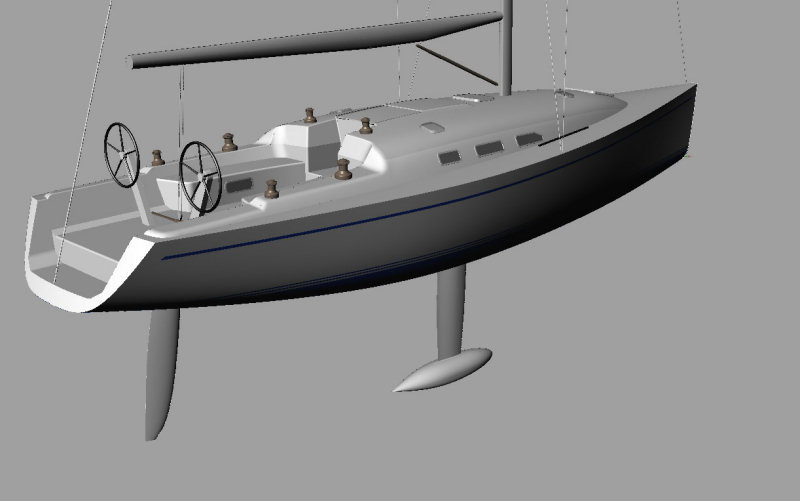

Aft starboard view
(Click to enlarge)

Click here to view more images.

  ANDREWS 45
                    Preliminary  Dimensions

LOA       45.0 ft. 13.72 m
LWL       40.1 ft. 12.22 m
Beam      12.7 ft.   3.86 m
Draft          9.0 ft.   2.74 m

                       Displacement

 14,650 lbs 6645.1 kg
Ballast      7250 lbs 3288.5 kg
IM         56.9 ft. 17.43 m
ISP        63.8 ft. 19.45 m
J           18.9 ft.   5.78 m
TPS      18.0 ft.   5.50 m
P          57.2 ft. 17.43 m
E          20.7 ft.   6.32 m
Spreader sweep angle   22º
Fuel Approx. 75 gallons
Water Approx. 100 gallons
Waste Approx. 55 gallons

Engine

Sail Drive

 Yanmar  3JH4E 39 hp fresh
water-cooled diesel
SD 50

45 foot sail plan
Sail Plan
 (Click to enlarge)

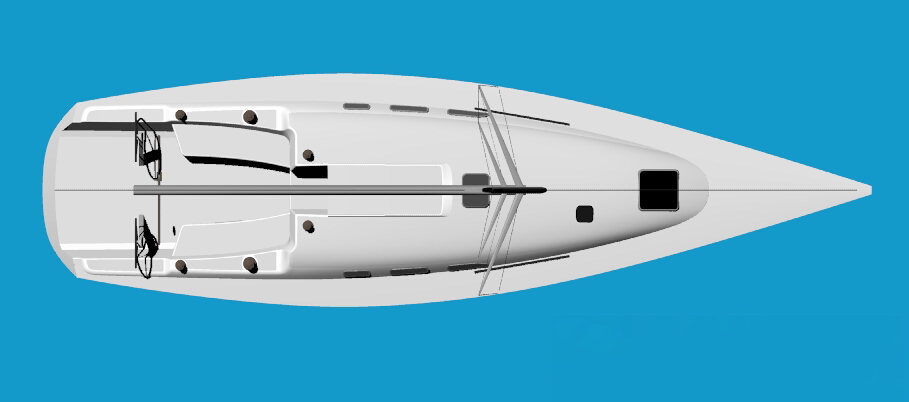

45 foot deck plan
Deck Plan
 (Click to enlarge)

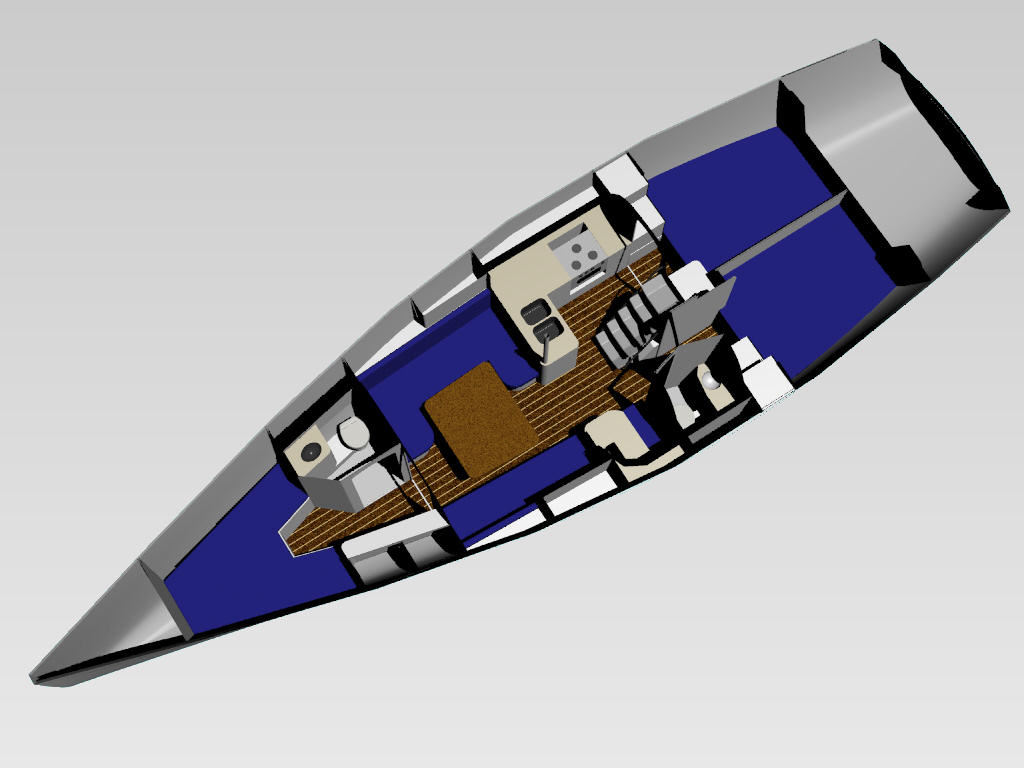

 45 foot interior
Interior Plan
 (Click to enlarge)
