Andrews45 Plans

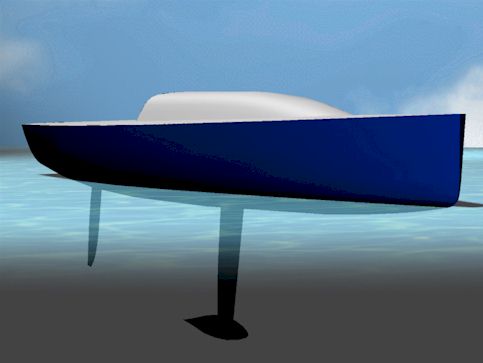

CAD Rendering
(Click to enlarge)

Andrews 45
Principal dimensions

                LOA        13.75 m.   45.1 ft.
                LWL          12.4 m.   40.8 ft.
                Beam        3.75 m.   12.3 ft.
                Draft            2.8 m.     9.3 ft.
     Displacement 5440 Kg. 12,000 Lbs.
               Ballast    2520 Kg.    5555 Lbs.

Melinda Lincoln christens "Locomotion" on December 23, 1999

Sail Plan
(Click to enlarge)

Deck Layout
(Click to enlarge)

Interior Plan
(Click to enlarge)

Construction History Page
See previous images of this design during the construction process.

    "Locomotion" reaching with a
      asymmetrical spinnaker off
      Newport, California.

   Start of 2001 Newport to Ensenada
   race where Locomotion was the
   fifth monohull to finish.
