Andrews 41
PHRF Racer

This Andrews 41 is a state-of-the-art ULDB with high ballast ratio,
plenty of sail area and a spacious deck arrangement.

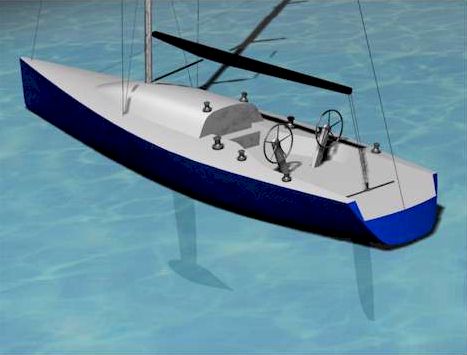

CAD Rendering
(Click to enlarge)

  Andrews 41
Principal Dimensions

                                               LOA                                 41.0 Ft.
                                               LWL                                37.00 Ft.
                                               Beam                              11.08 Ft.
                                               Draft                                  8.50 Ft.
                                               Displacement                 8,400 Lbs.
                                               Ballast                             4430 Lbs.
                                               Main          (Including Roach) 577 Ft.
                                               Jibs         (100% Foretriangle) 383 Ft.
                                              Spinnaker    (SL * SMW * .75) 1023 Ft.
                                              Fresh Water       26 US Gal.
                                              Diesel Fuel        30 US Gal
                                              Auxiliary Engine     Yanmar 3GM30C 27 HP

with SD20 SailDrive

Sail plan
Sail Plan
(Click to enlarge)



Deck plan
Deck Plan
(Click to enlarge)



Interior plan
Interior Plan
(Click to enlarge)
