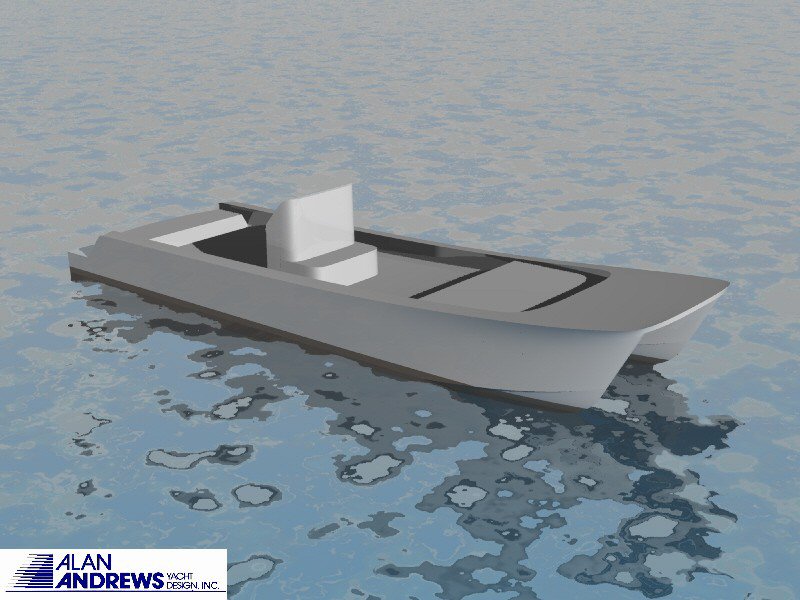

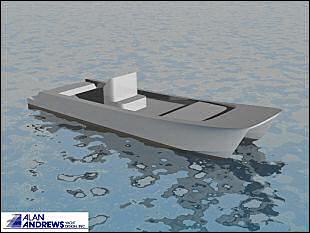

CAD rendering

Click to enlarge. Use browser back button to return here.


ANDREWS 35 Ft. POWER CATAMARAN

Principal Dimensions

LOA

   10.67 m.  35.0 ft
LWL    9.50 m.  31.2 ft
Beam       2.89 m.  9.5 ft
Draft          .28 m   .9 ft
Displacement (empty)  1800 Kg.  4000 Lbs.
Fuel  485 liters  110 gallons
Speed      Measured by GPS at 40 kts.
Power: Twin 150 hp four cycle outboards
Construction: E-glass, SuperLite balsa core, vinylester resin
Launched November 1, 2004 by Dencho Marine, Inc.
Rigging and outfitting by Dodd Performance Racing

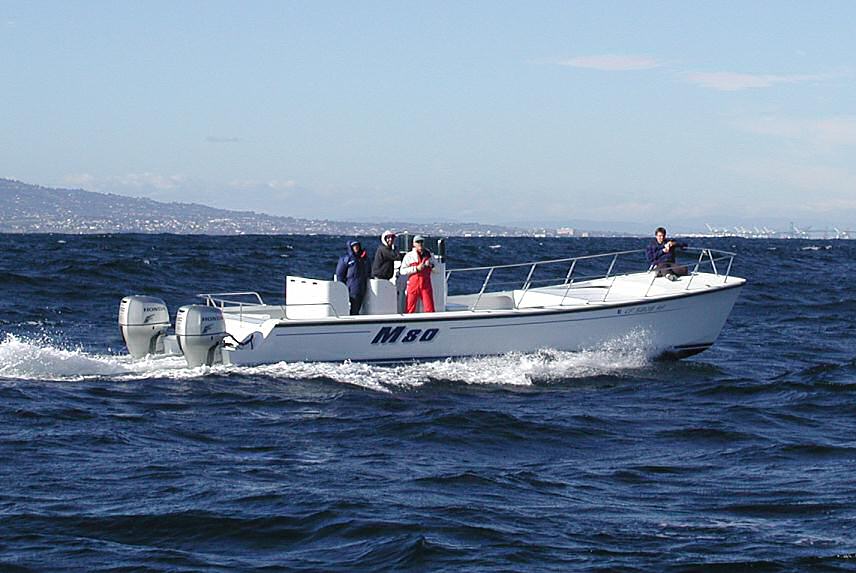

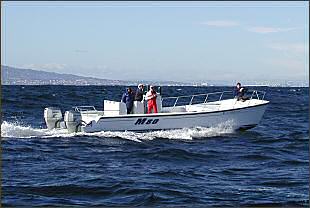

35 ft Power Cat

Click to enlarge. Use browser back button to return here.

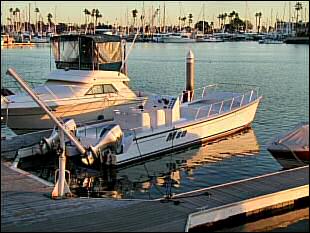

35 ft power cat
