Andrews 28
Trailerable Racer/Cruiser

The Andrews 28 was designed for Sylvana Yachts to fit the need for a high performance trailerable racer/cruiser. In addition to great performance this boat has a comfortable cockpit with seating for six or more. Below decks there are double berths forward and aft, a mid-cabin table, full galley, navigation station and enclosed head. Sail handling is simple with fractional jib and large mainsail set on a carbon mast with aft swept spreaders. Even the spinnaker is simple, setting on the retractable sprit. The keel and rudder retract for shallow water berthing and trailering and which is aided by the deck stepped mast. Sylvana Yachts builds to high quality with vacuum infused laminates in female molds and equips the boat with carbon mast, sprit and rudder.This Andrews 28 lets you lead around the race course one weekend and take the family for a weekend cruise the next. Contact Sylvana Yachts for price and delivery information.

Return to New Design Page

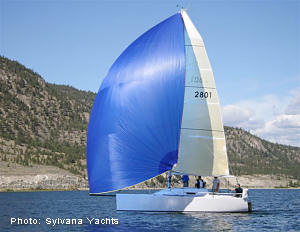

Andrews 28 sailing
(Click to enlarge)

Deck plan
Deck Plan
(Click to enlarge)

  ANDREWS 28
                    Principle  Dimensions

LOA       28.00 ft.  8.50 m
LWL       25.75 ft.  7.85 m
Max Beam        9.82 ft.  2.99 m
Draft (keel down)
      (keel up)
  7.00 ft.
  2.41 ft.
 2.13 m
 0.73 m

    Displacement

 3750 lbs 1700 kg
Ballast   1232 lbs   560 kg
IG    35.42 ft. 10.80 m
ISP   40.50 ft. 12.34 m
J    11.00 ft,   3.35 m
STL/JSP   16.40 ft.   5.00 m
 P  11.00 ft.   3.35 m
 E  13.00 ft.   3.96 m
 Spreader Sweep  22
 Fuel  18 gal   68.00 L
 Fresh Water  20 gal   75.60 L
Engine  Yanmar 1GM10 SD20

Sail plan
Sail Plan

(Click to enlarge)

Interior plan
Interior Plan
(Click to enlarge)
