Andrews 23 Tender Design Studies

Designed as a mega-yacht tender, this sleek Andrews 23 transports the guests with speed and in style. Whether the pleasures of the day are water skiing, snorkeling, exploring a secluded cove or a quick trip to town, this boat will get you there quickly and turn heads along the way. This boat stows in a 23’ x 8’ x 4’ “garage” and launches with its own crane. Diesel power allows unlimited fill-ups from the mother ship and the 50 gallon capacity provides plenty of range.

Return to Power Design Page

Click on thumbnails to see larger view. Use your browser back button to return to this page.

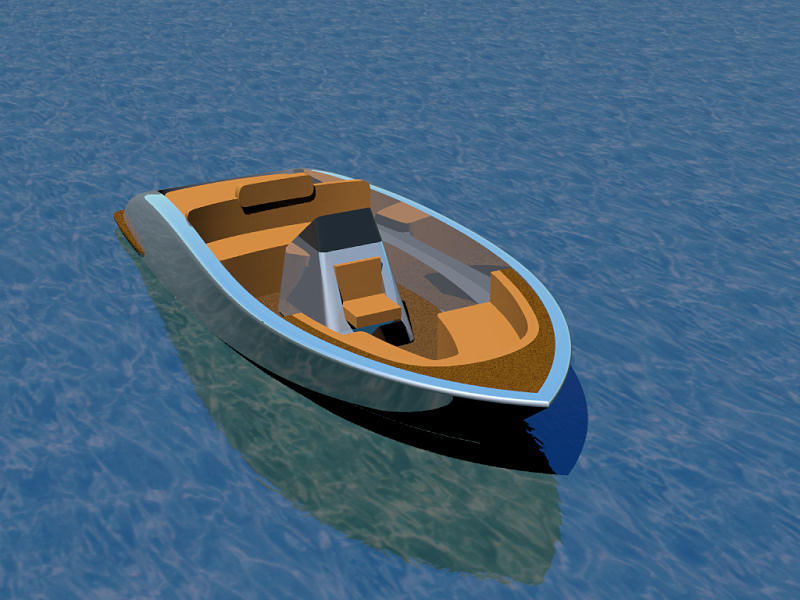

Andrews 23 foot tender

Principal Dimensions

LOA	6.95 m.	22.8 ft.
LWL	5.04 m.	16.5 ft.
Beam	2.38 m.	7.8 ft.
Draft	0.44 m.	1.43 ft.
Displacement (empty)	1800 Kg.	4000 Lbs.
Fuel	189 liters	50 gallons
Water	38 liters	10 gallons

Power	Cummins 4.2L ES 320 turbo diesel - Mercruiser Bravo 1 outdrive

Construction	E-glass, Airex C7..90 & C70.130 foam core, vinylester resin

Speed	In excess of 30 knots

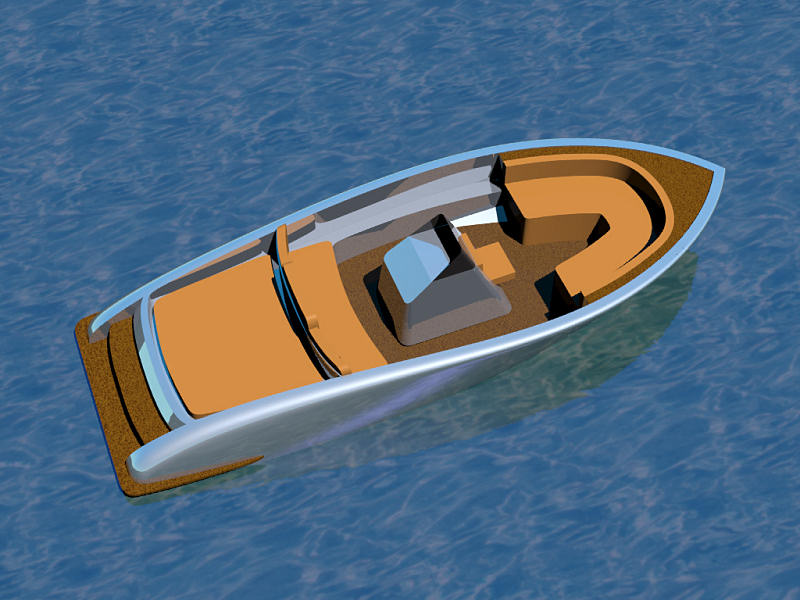

Overhead perspective

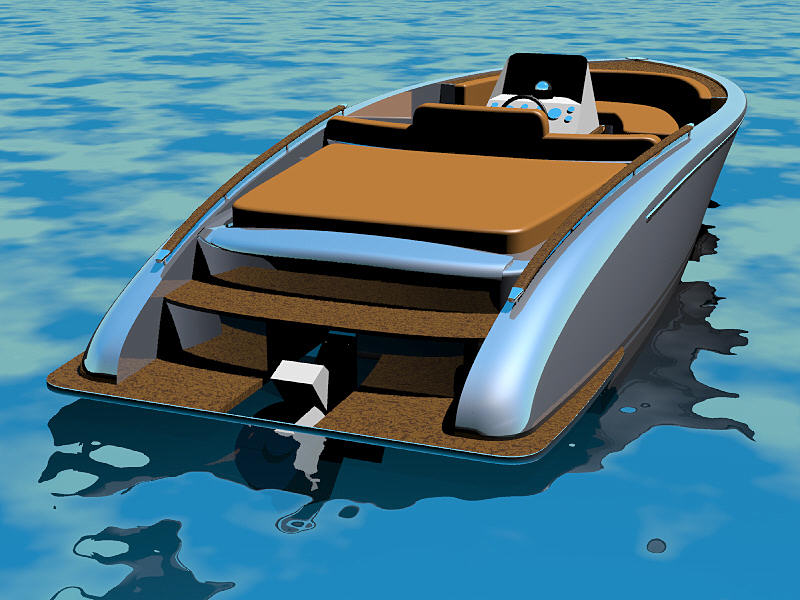

Stern drive up

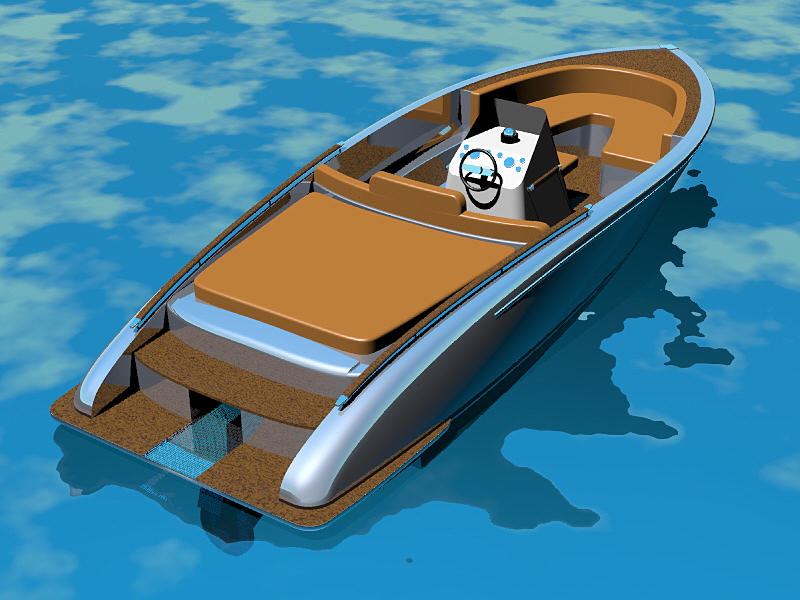

Stern drive down

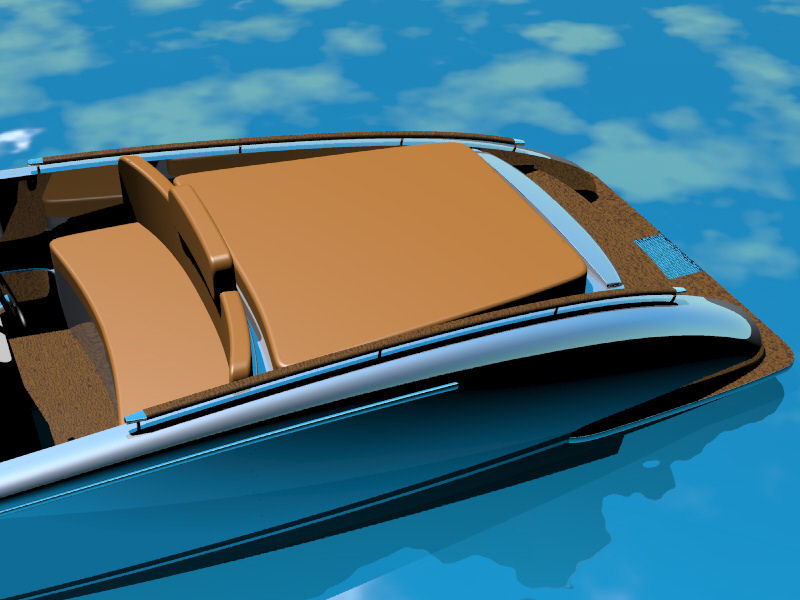

Aft lounge

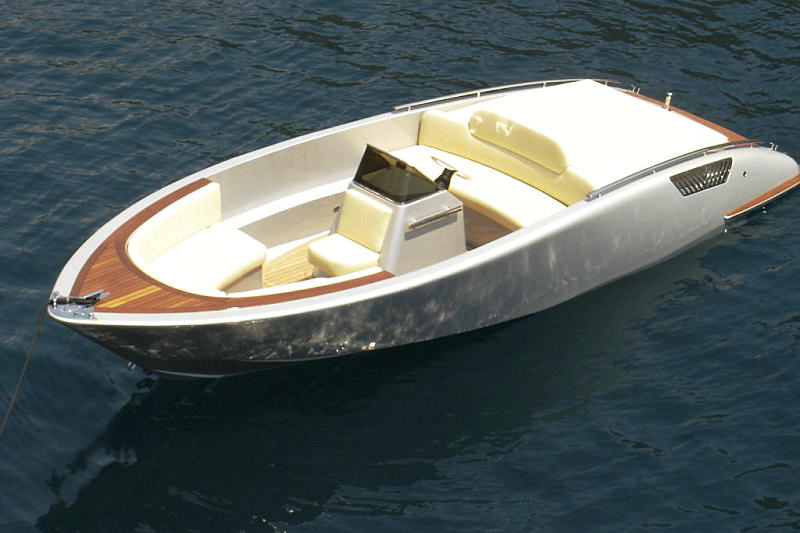

In the water!

Bow perspective

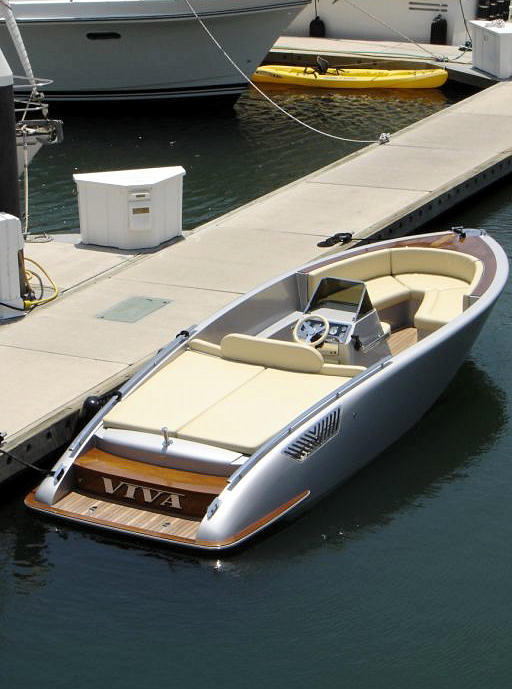

At the dock

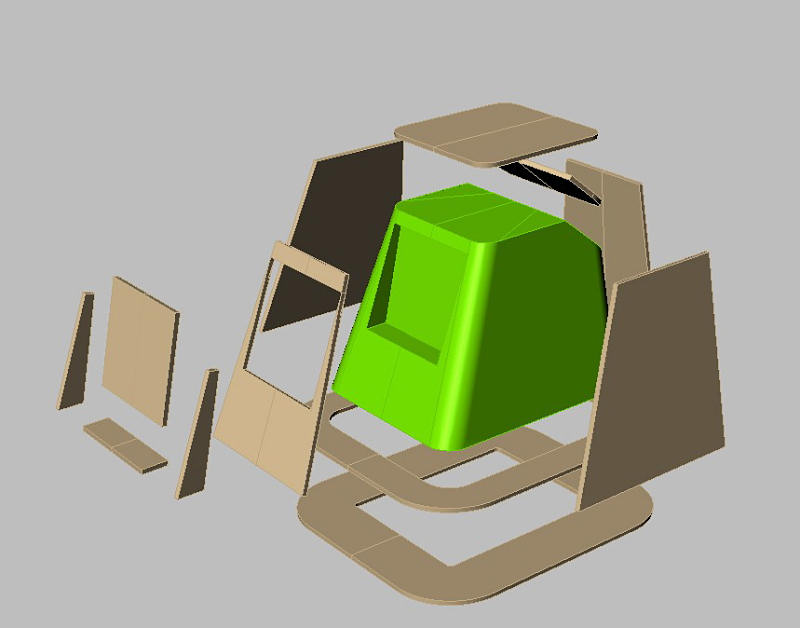

Console assembly

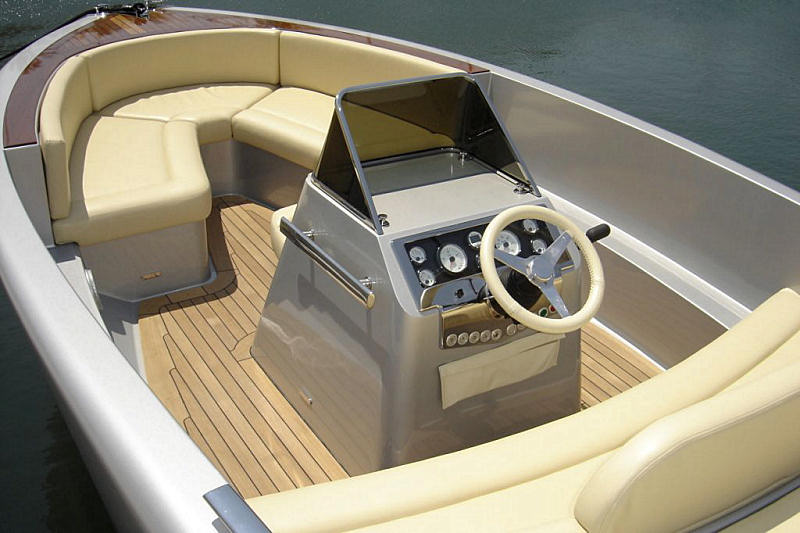

Console detail
