Governor's Cup 21
Match & Fleet Racer

One design keelboat for 3-4 crew in events such as Governors Cup, US Jr. Match Race Championships, Sears Cup, ICSA Sloop Championships. First 12 boat fleet has received top reviews from Governors Cup, Balboa Challenge Cup, Sears Cup, ICSA Sloop Nationals. Additional GC 21's are racing in Toronto and Newport Beach, CA. For price and delivery contact The Yacht Barn, Inc. at (714) 273-3800.

Key elements of this design are great light air performance, simplicity of set up and operation, rugged construction to increase damage tolerance and design for low maintenance.

SPECIFICATIONS SHEET

General Dimensions
LOA     6.40 m 21.0 ft.
LWL    5.61 m 18.4 ft.
Beam    2.46 m   8.1 ft.
Draft    1.52 m   5.0 ft.
Displacement    757  kg  1670 lbs.
Ballast     295  kg     650 lbs.
IM   7.86 m 25.8 ft.
ISP   8.84 m 29.0 ft.
P   7.92 m 26.0 ft.
BAS      .91 m   3.0 ft.
E   3.05 m 10.0 ft.
SPL   2.62 m   8.6 ft.
J    2.39 m   7.85 ft.

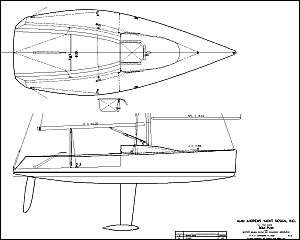

Deck Plan
(Click to enlarge)





Click here for the NBSSA press release (118 kb PDF) on this exciting new design.



                   Sail Plan
                     (Click to enlarge)


   Spinnaker reaching - Click to enlarge
 (Photo: Mary Longpre)

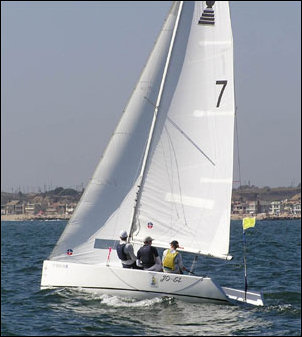

     Sailing to weather - Click to enlarge
 (Photo: Mary Longpre)
